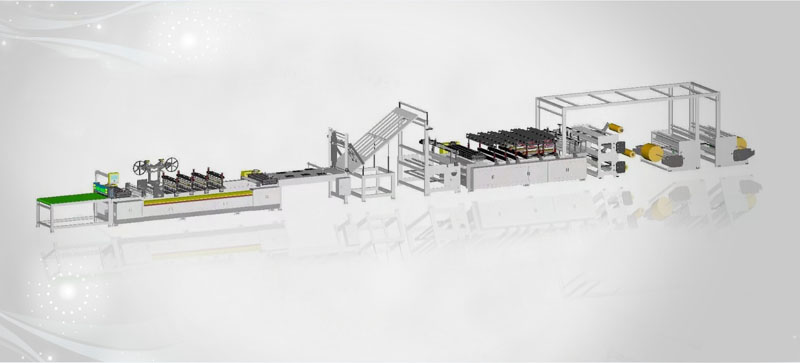

Honeycomb Paper Mailer Making Machine
This product was developed by our company in response to the global concept of promoting environmental protection and reducing white pollution. Made of pure paper without other materials. The vibration-damping layer may be a blister-shaped paper or a honeycomb mesh-shaped stretched paper. All are formed by gluing.
Product Description
This product was developed by our company in response to the global concept of promoting environmental protection and reducing white pollution. Made of pure paper without other materials. The vibration-damping layer may be a blister-shaped paper or a honeycomb mesh-shaped stretched paper. All are formed by gluing.
Product specification
|
product name: |
Honeycomb Paper Bag Making Machine |
|
Suitable material |
Kraft paper 100-130g/sm2 |
|
Machine speed |
20-60pcs/min |
|
Maximum bag size |
one line 550mm×450mm、two lines 250mm×450mm |
|
Effective width of unwind |
Kraft paper 1150mm honeycomb paper 520mm |
|
Effective diameter of unwind |
kraft paper φ1300mm honeycomb paperφ400mm |
|
Voltage: |
three pahse AC380V 50HZ 50Kw |
|
Air pressure |
over 6kg constant pressure |
|
Overall Dimension(LXWXH） |
23m×2.3m×2.3m |
|
Machine weight |
9tons |
|

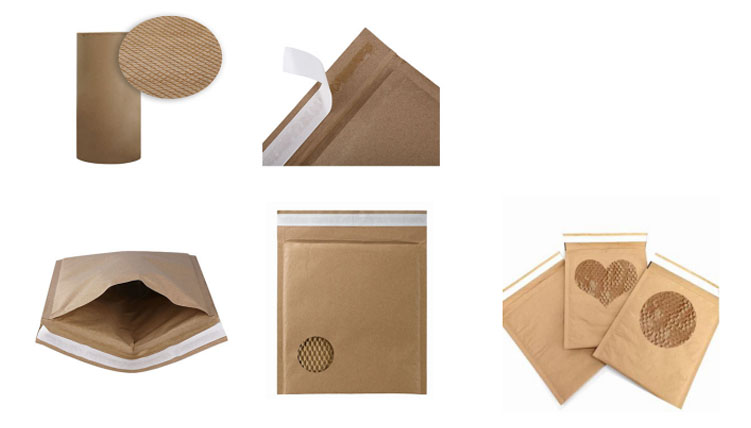

The usage of product made by this machine:
|
The honeycomb mailer can instead the current bubble film mailer for economic and environmental protection. Under the background of |
|
plastic ban, it has very huge market. It can be widely used as outer package for mailing clothes, small accessory, food and file |
|
|
etc. It can protect the products in environmental friendly way. And it will be a very good product which can instead the plastic |
|
|
bubble film in the future. |
